Description
Description
HDMI 5 in 1 out switcher provides a way to switch among multiple HDMI sources, like Laptop, HD-DVD, PS3, Xbox360 to a HDMI TV or display. It allows the switching of 5 inputs and maintains all signal components present within the encoded signal HDCP encryption. You could easily select from different programme sources via front panel push buttons or IR remote control without moving cables around.
Note
- Suggest using HDMI 1.4 cable as input source cable; don’t support TV stick.
2. Suggest input HDMI cable less than or equal to 15ft, output HDMI cable less than or equal to 15ft.
3. There is a plastic film in the battery slot of the remote, please remove it firstly before using the remote.Product Parameters
Brand:Vention
Name:5 In 1 Out HDMI switch
Model: ACDG0
Color: Black + Gold
Connector Type: HDMI A Female, DC Power Port
Version: HDMI 1.4
Connector: Gold Plated
Resolution: 4K 30Hz
Transmission Direction: HDMI to HDMI (INPUT to OUTPUT)
Shell Material: Aluminum Alloy + ABS
Chip: PI3HDMI301
Range of Working Temperature:(-10 to +50 degrees Celsius)
Operating Humidity Range:5 to 80%
Power: DC 5V/1A
Indicator Light: LED Power Indicator, 5 Signal Indicators
Support Input Line: 10-15m
Output Line: 10-15m
Warranty: 1 Year
Packing:Vention Retail BoxNote:The above are the specific parameters of the 5-in-1 switcher
HDMI SWITCH 5 IN 1 OUT
Efficient way to expand HDMI ports
Five Screens Switch at Will
Easily switch 5 HDMI sources to a single HDTV

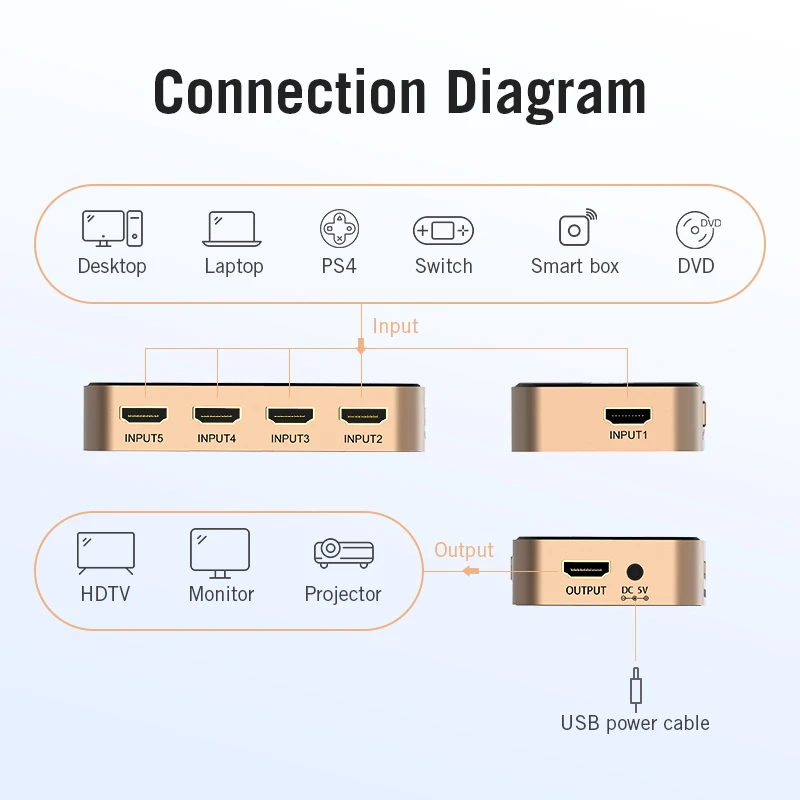

Connection Diagram
4Kx2K@30Hz Ultra HD
Support Max 4096*2160 resolution
3D effect
Audio and Video Synchronization
More exciting to enjoy music feast
Manual Switching
Remotely switch at your will
or press the button to select signal
Plug&Play Easy Set-up
Just plug, the screen instantly displays
Additional Power Supply
DC (5V 1A )power port, charging to avoid power short
High Performance
Bulti-in premium chip
ensure stable transmission, clear and smooth picture
Perfect Memory Function
Restores the last play status or progress when restarting or reconnecting
Delicate and Compact
Palm-sized, save space
Alloy Casing
Wear resistant,good heat dissipation
Gold-plated Connector
Pluggable, reducing data transmission loss
Indicator Light
Always know the working status
Details
Product Parameters
