80W CNC Laser Cutting Machine

(70 customer reviews)

$33$355

-

Compare

Description



LT-80W-AA-PRO/LT80W-AA-PRO-KIT:

Product Features

1. High Power Laser Module— 2-Beam compression technology, 10W optical power laser module

2. Powerful Cutting Ability

Cut 8mm bass plywood: 120mm/min, 100% power, by one pass

Cut 5mm black acrylic:  50mm/min,  100% power, by one pass

Cut 5mm MDF:       150mm/min, 100% power, by 2 passes

3. Professional Air Assist— Blowing through the air nozzle to get clean-cut edges, improve cutting performance

4. Super Fast Engraving Speed— ultra-fast engravingon stainless steel-30mm/s

5. Widely Compatibility— Suitable for Z*aitu,O*tur,Tw* Trees,S*ulpful9, Xtool, A*omstack and other models of DIY laser engraving machines.

Two Ways to use LT-80W-AA-PRO:

Way1: with the air asssit nozzle

The laser head comes with a specially designed air assist nozzle. When cutting with this laser head, the air assit system will blow air through the air nozzle. That will bring you excellent cutting experience and greatly reduce burned marks.

To make full use of the air assist, it is recommended to buy together with the air pump.

Recommended Air Tubing inner diameter: Φ2.5-3 mm

Recommended air pump pressure: 150kPa

Way2:with the laser protective cover

When engraving with this laser head, please use this protective cover that can effectively filter blue light. You can peform engraving without wearing laser goggles for convenience.

Specification:

Material: aluminum alloy

Effect output power: 80W

Optical Power:10W (±1W)

Wavelength: 450nm (±10nm)

Light color: blue

Focus Length: 45mm

Spot form: Punctiform, fixed focus

Electric power: 12V 3.2A(3A-3.5A); 24V 1.7A(1.5A-2A)

PWM Modulation: 0/3-12V 0-5kHz TTL/PWM

Input port: XH2.54-3P socket

Item size: 40*40*147mm

Laser module net weight: 250g

With Air Assist VS No Air Assist

Blowing through the air nozzle to get clean-cut edges, improve cutting performance

without Air Nozzle:  Scorched Edges

with Air Nozzle:  Clean-Cut Edges

Dual-LDs with Beam Compressed Technology

One laser module has two built-in laser diodes.The optical power of each diode is 5W.

With beam combination technology, our laser module is double powerful and the beam quality is as good as a single diode.

Powerful Cutting Ability

Cut 8mm bass plywood: 120mm/min,100% power,by one pass

Cut 5mm black acrylic: 50mm/min,100% power,by one pass

Cut 5mm MDF: 150mm/min,100% power,by 2 passesMinimum 0.08mm Ultra-thin Beam

Ultra-fast engraving on stainless steel-30mm/s

Widely Compatible Design

Suitable for Z*aitu,O*tur,Tw* Trees,S*ulpful9, Xtool, A*omstack and other models of DIY laser engraving machines

Reference Settings for Cutting

Reference Settings for Engraving



LT-20W-A:

450nm Adjustable Focus Laser Module for Laser Engraving Machine

By LASER TREE

Product Description:

The blue laser module is specially designed for CNC milling machine and DIY engraving. The wavelength is 450nm, which is an effective tool for laser engraving and cutting. They can engrave and cut various materials.

Features:

Blue Laser Module — Professional laser head with high speed and high stability. Bright blue-violet light, easy for locating when engraving.

Adjustable Focus — Adjustable laser head, easy to adjust, ensure engraving with good quality and high efficiency.

Easy to assemble—small, compact, convenient and easy to install.

Specification:

Effect output power: 20W 40W

Material: aluminum alloy + plastic

Wavelength: 450nm

Light color: blue

Spot form: Punctiform, Adjustable focus

Input voltage:

20W- 12V 1.6A(1.4A-1.8A)

40W- 12V 1.8A(1.5A-2A)

Interface parameters: support TTL signal control power

Product weight: 100-220g

Packing List:

1 * Laser head

1 * Cable

LT-40W-A-GOLD:

LT-40W-F20-GOLD:

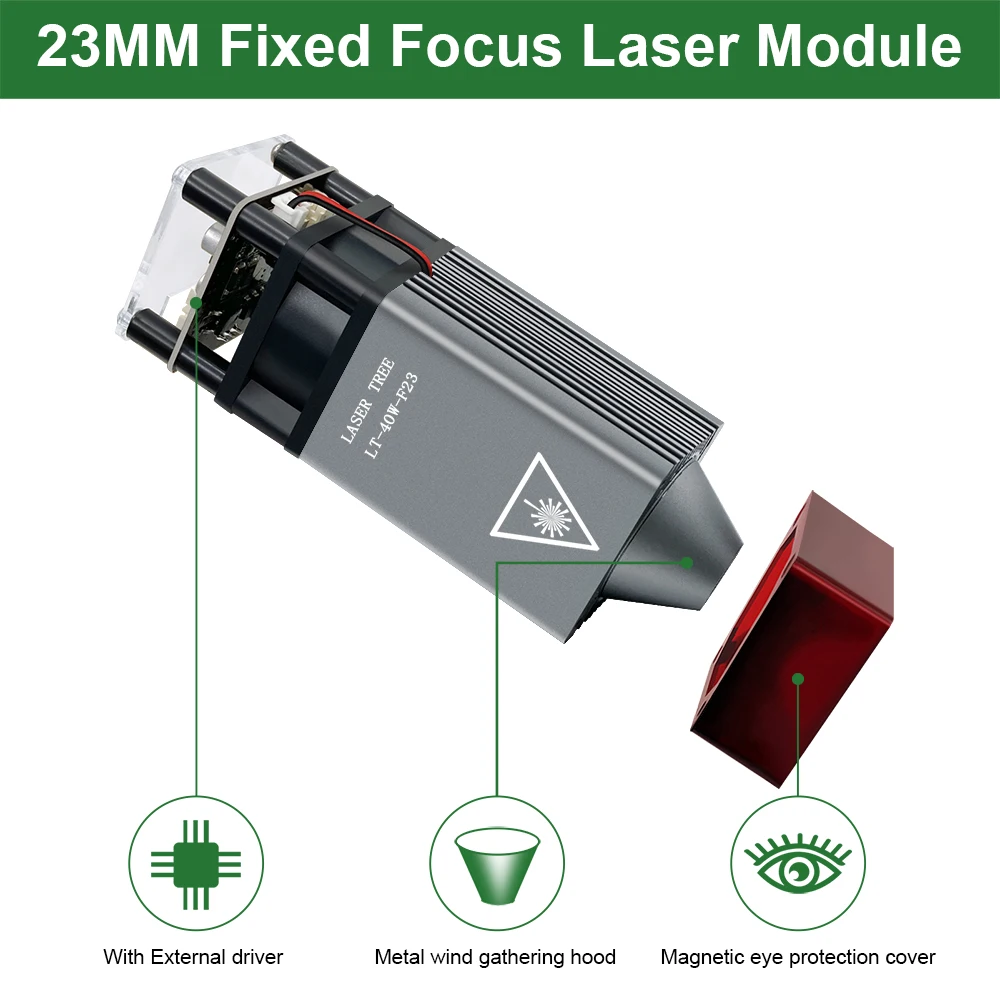

LT-40W-F23:

LT-80W:



Note:

If you need the LT-80W-AA、LT-40W-F23、LT-20W-A instruction manual, please contact us, thank you!

Additional information

Ships From

CHINA, Poland, Russian Federation, brazil

Color

LT-80W-AA-PRO-12V, LT-80W-AA-PRO-24V, LT-20W-A, LT-40W-A-GOLD, LT-40W-A-GOLD-KIT, LT-40W-AA, LT-40W-F23, LT-40W-F23-KIT, 80W-AA-PRO-KIT-12V, 80W-AA-PRO-KIT-24V

Is Smart Device

YES

Model Number

80w Laser Head

Condition

New

CNC or Not

CNC

Brand Name

Laser Tree

Origin

Mainland China

Certification

CE

Type

Blue Laser Head

Material

Aluminum alloy + plastic

Effect Laser Power

20W/ 40W/ 80W

Optical Power

4W/5W/10W

Wavelength

450nm

Operating Voltage

12V/24V

Modulation

0/5-12V 0-5kHz TTL/PWM

Interface

XH2.54-3P socket

Application

Cutting/ Engraving

Compatible with

Various models of DIY laser engraver cutter

Service

Dropping Shipping Service

70 reviews for 80W CNC Laser Cutting Machine

  1. Andrea Xiong

    perfect

  2. Gayla Tincher

    ❤️

  3. Lakisha Mullenix

    Not included in the standard cnc3018 mount
    Why not make universal size?
    Board connector must be turned
    Be careful

  4. Gérald Noir

    AAA+

  5. Jaqueline Phipps

    Unfortunately the laser does not adapt so easily to the laser orturr LM pro 2. This is a real pain. I had to go running and buy longer screws because the 4 provided was too short and already 4 is not enough. With discussions between me and Laser Tree I had a little discount for the unpleasure. For a moment I couldn’t really test the laser but the little I did I see that it is more powerful than my orturr 5,5w.

  6. Coleen Dragon

    I placed an order to Japan and paid but it’s been 2 months and I still haven’t received the item and can’t refund it because it’s still in shipping status.
    poor service.

  7. Lluciano Marcos
