220V Inverter Arc Electric Welding Machine

Description

Model Number : 200
Usage : Home diy
Arc Current : 20-200A
Usage : Home diy
Model Number :200
Arc Current : 20-200A
Pilot Arc Current : HGF65U
Pulse Frequency : 50/60HZ
Welding rod specification: 2.5/3.2
Suitable material: stainless steel / carbon steel / low alloy steel
Usage : arc welding machine
Arc Current : 10.6A
Please note: this product is only 220V, no 110V.
package A :
1 x Arc welding machine
2 x Quick plug
1 x Strap
package B :
2 x quick plug
1 x wrench
1 x welding cap
1 x protective lens
1 x ground clamp
1 x strap
1 x welding tong
5 x welding rods
package C:
2 x quick plug1 x wrench1 x welding cap1 x protective lens1 x ground clamp1 x strap1 x welding tong5 x welding rods
1 x 5m Welding wire
package D:
1 x Welder clamp (3m line)
1 x Ground clamp (2 m line)

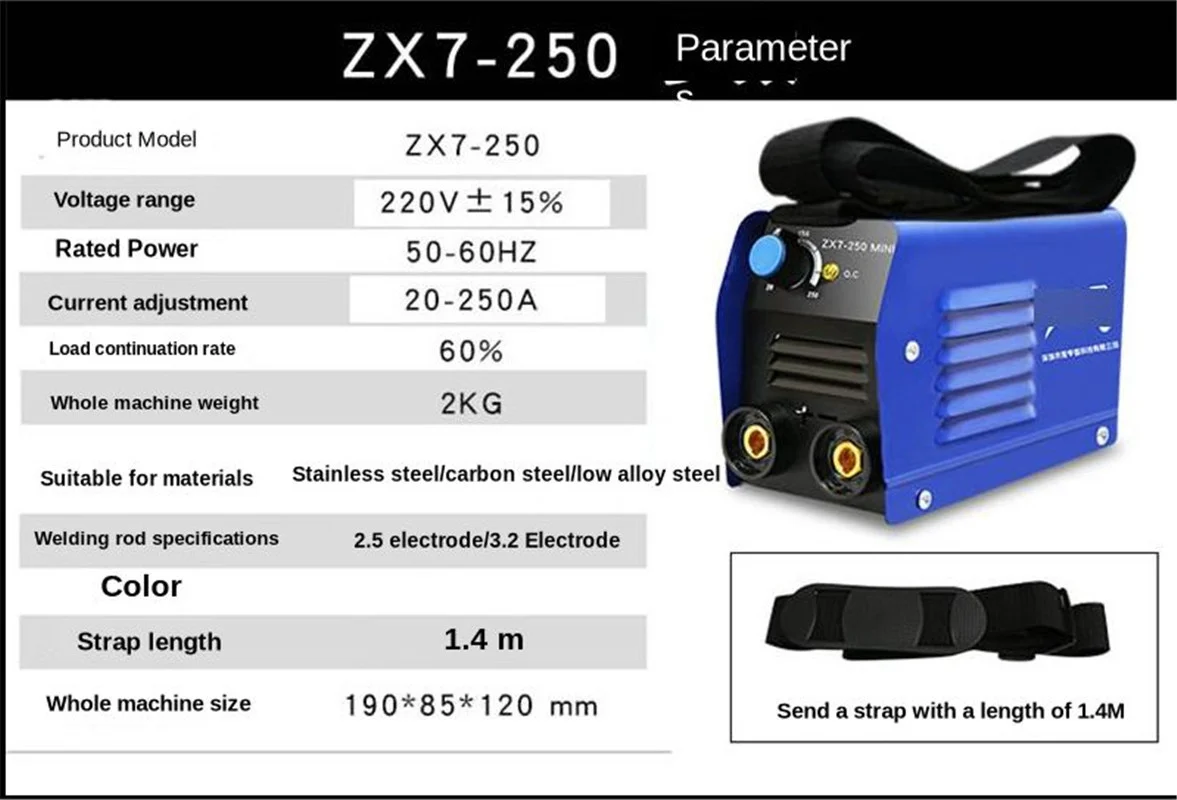

Specification:
Usage: arc welding machine
Rated input current: 10.6A
Phase number: single phase 110-240V
Current adjustment range: 20-250 stepless adjustment
Rated input voltage: 220V ± 10%
No-load voltage: 65V
Rated frequency: 50/60Hz
No-load loss: 40W
Rated load duration: 35%
Efficiency: 80%
Insulation class: F
Applicable electrode: 2.5/3.2mm
Rated output voltage: 28V
Cooling method: forced air cooling
Please note: this product is only 220V, no 110V.
Features:

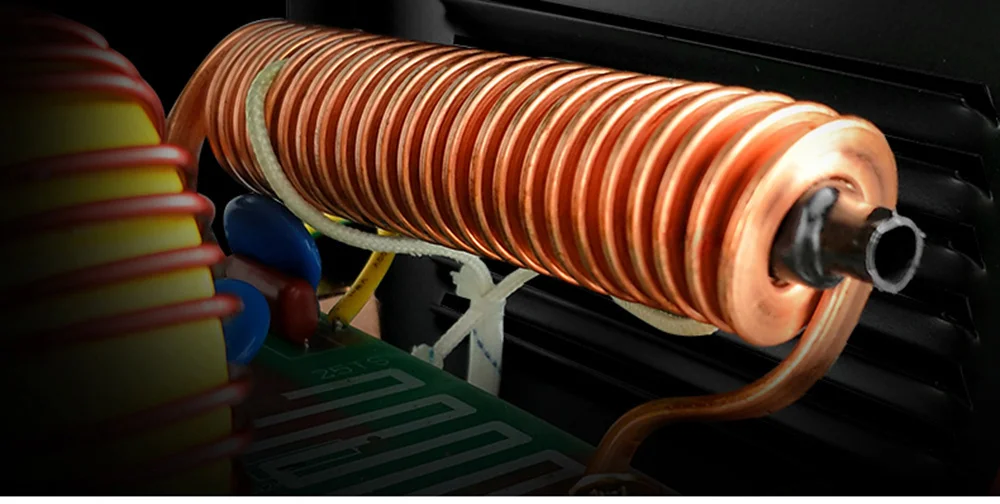

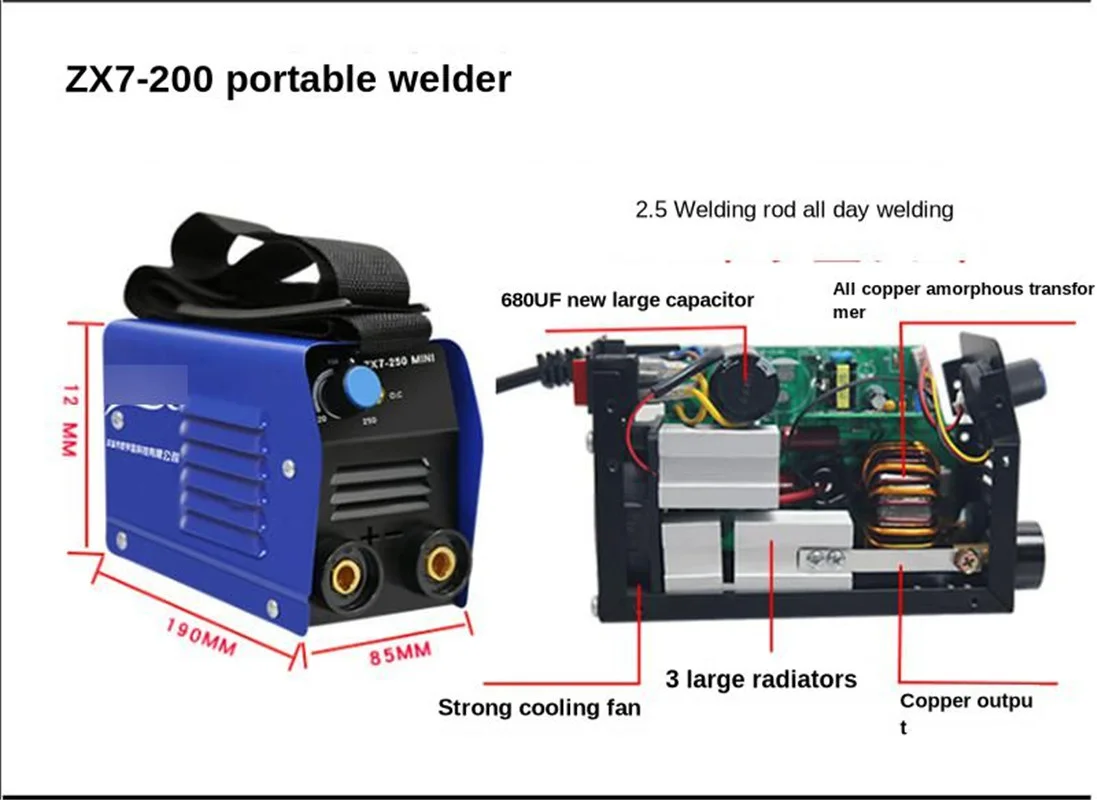

-Amorphous structural transformer. Lightweight and miniaturized, it is smaller than other cores.
-High quality capacitor.Special large electrolytic capacitor for welding machine, high capacity and high temperature resistance, long life, 85 °C full load can work for more than 20 hours, no obvious attenuation phenomenon.
-New patch technology control board. Dustproof, waterproof, anti-aging, anti-conducting, reducing machine failure rate.
-IGBT single tube. With a service life of more than 10,000 hours, it is more efficient, longer lasting and more stable than other single tubes.
Increase the radiator.
