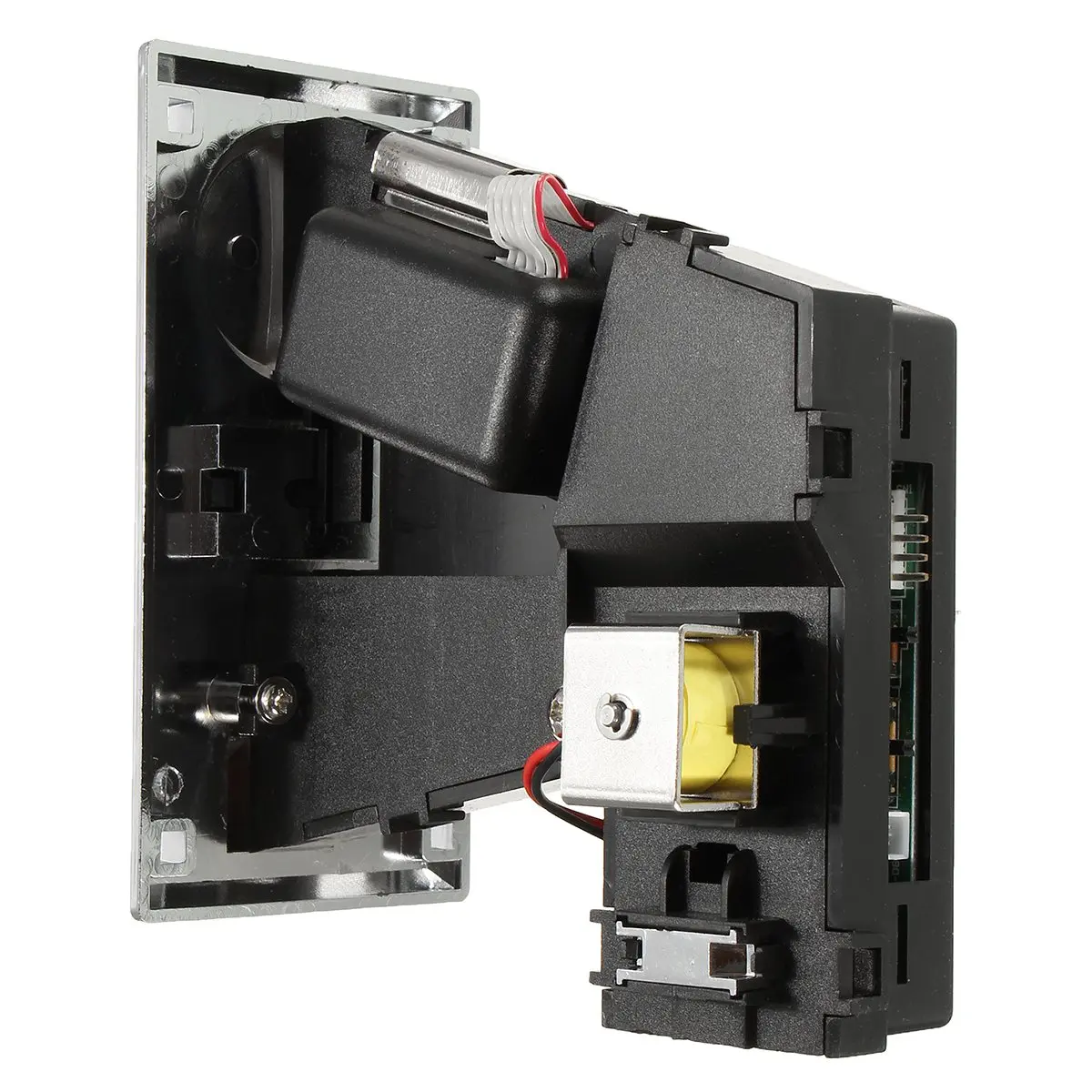

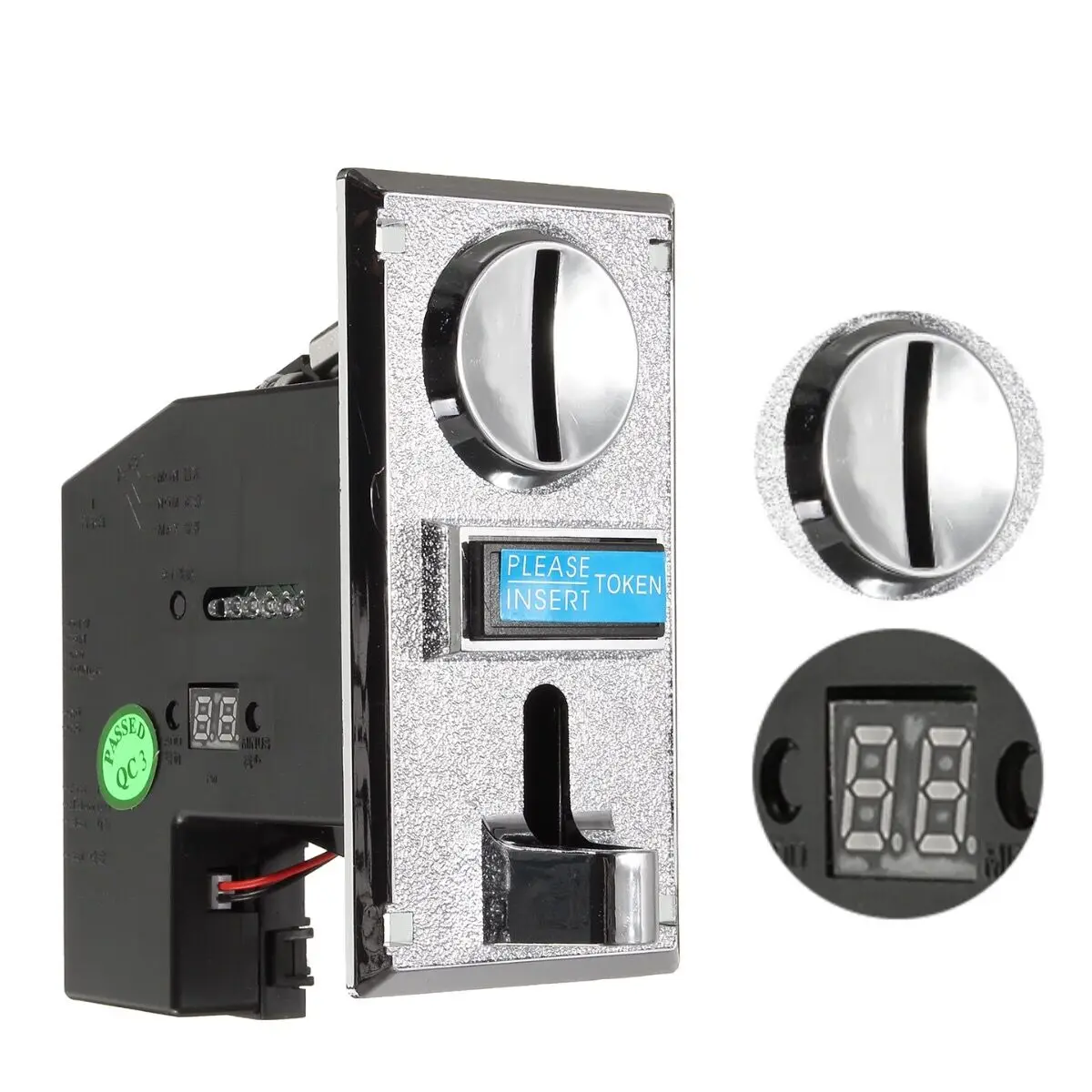

Multi Coin Acceptor

Description

Product Description:
Identify accuracy rate: 95%
Applying coins:
Diameter: Ф15mm-Ф29mm
Thickness: 1.8mm-3.0mm
Applicable to All kind of coins and foreign currencies.
Atmospheric pressure: 80Kpa-106Kpa
Operating voltage: DC12V ± 10%
Working current: 50mA
Moment maximum current: 350mA (less than 0.5S)
Humidity: ≤95%
Storing temperature: -20℃–+85℃
Operating temperature: -15℃–+60℃
Recognition speed: ≤0.6sec
Recognition: 99.5%
Canning material: PC plastic

Characteristic:
Suitable for a variety of coins
CPU process control, and accurate scoring
Special precision/normal stall, coins smoother
Pulse output available widths
Prevent phishing and other means of cheating,cheat alarm
Suitable of water vending machine, snack vending machine or game machine.

Instructions:
1、Pressing the setting key(8), and then you will see the letter E, (choosing) several currency system),
after that you can press the accurate key or broaden key to increase or decrease the numerical value.
After setting up, please press the setting key to confirm.
2、Appearing the letter H (the quantity of sampling for various currency value).
3、Appearing the letter P (the numerical valuef for signal output of various currency value).
4、Appearing the letter F (the precision of various currency value).
5、By parity of reasoning , setting is finished with your chosen currency.
When the letter E is shown, plase turn off the power and it will reopen again.

Package Included:
1 Set x Coin Acceptor
