LCD digital advertising display screens

$3,520

$1 Cashback

100 in stock

Compare
SKU: T58H3SWWTTBM Categories: ,

Description

Shopping mall guide 16.8″ 19.3″ 24.4″ 28″38″ 48″50.5″ 59.7 inch advertising strip/ stretch/ bar LCD panel/ shelf edge digital signage display

Bar screen android tablet for business
SystemCPUQuad core cortex A9,1.6G,RK3188
(We can choose to use A64/RK3128/RK3288/RK3399 chip to design)

RAM

1GB

Internal memory

8GB

Operation system

Android 4.4 Default
(If any Android 5.1/6.0/7.1,we need to change CPU)

Display

Panel

19″bar screen
(3.”9 ~59″ Design Option We can design the screen size according to customer requiement)
We have done 21″/23.1/28.8/37/38/43.8(4K)/44.8/48.5/57.5/86/88″ before

Resolution

1920*360

Active area

476.64(H)x 89.37 mm(V)

Viewing angle

89/89/89/89(L/R/U/D)

Display mode

Nomally black ,IPS

Contrast ratio

1200

Luminance

300cd/m2

Aspect Ratio

Bar screen

Network

WiFi

802.11b/g/n

Ethernet

10M/100M ethernet

Buletooth

BT 4.0

Interface

USB Host x 3

USB 2.0

USB OTG

USB OTG

SD card slot

SD/MMC card slot

Earphone

3.5mm earphone

Power Jack

DC input

RJ45

Ethernet

Media plays

Video format

MPEG-1,MPEG-2,MPEG-4,H.263,H.264,VC1,RV etc.


jpeg

Other

VESA

Wall mounting

Language

Multi-language

Working temp

0–40degree

Power consumption

30W

Accessories

Adapter

Adapter,12V,3A

User manual

yes

What is the Specification of our kiosk?

Index

Model

GT43B

Outside area (mm)

720.5(W)*162(H)*56.4(D)

Display area (mm)

698.5(W)*140(H)

Size

28 inch

Display

LCD

Dot pitch

0.1845(H) *0.1845(V)

Resolution

1920×758

Brightness

500-700cd (optional)

Contrast

3000:1

Viewing angle

89/89

Response time

8ms

Color

1677 million color

Color Gamut

92%

Connection method

Input method

HDMI/VGA/DVI/BNC,Network board/(optional)

Video input

CVBS

Control method

RS-232 485

Network function

optional

Power

Power consumption

26W

Standby power consumption

5W

Power management

DC 24V

Mechanical indicators

Stand installation

Need to be customized

Weight

5.18Kg

Operating environment

Operating temperature

0℃~ 50℃

Humidity

10~80%

Altitude

3000m

Mean Time Between Failures

50000 hours

Auxiliary material

System equipment connection wire

customized

Display unit bracket

optional

Connection wires

, Power line, serial control line

MODELGT49M
Screen Size49 inch
Display Area1209.6*320mm
Resolution1920*508
Brightness500cd/㎡
Contrast1000:1
Color16.7M/8bit
Viewing Angle89°/89°/89°/89°(L/R/U/D)
Touch ScreenOptional
I/OHDMI*1, VGA*1
All-in-one SolutionOptional
Power Input100-240 VAC, 50/60 Hz
Power Comsumption100W
Net Size1244.6*363.1*52.2mm
Net Weight16.8kg
AppearanceBlack/white metal shell, Anti-glare glass (optional)
InstallationShelf bracket (optional), VESA holes (optional)
AccessoriesPower cord

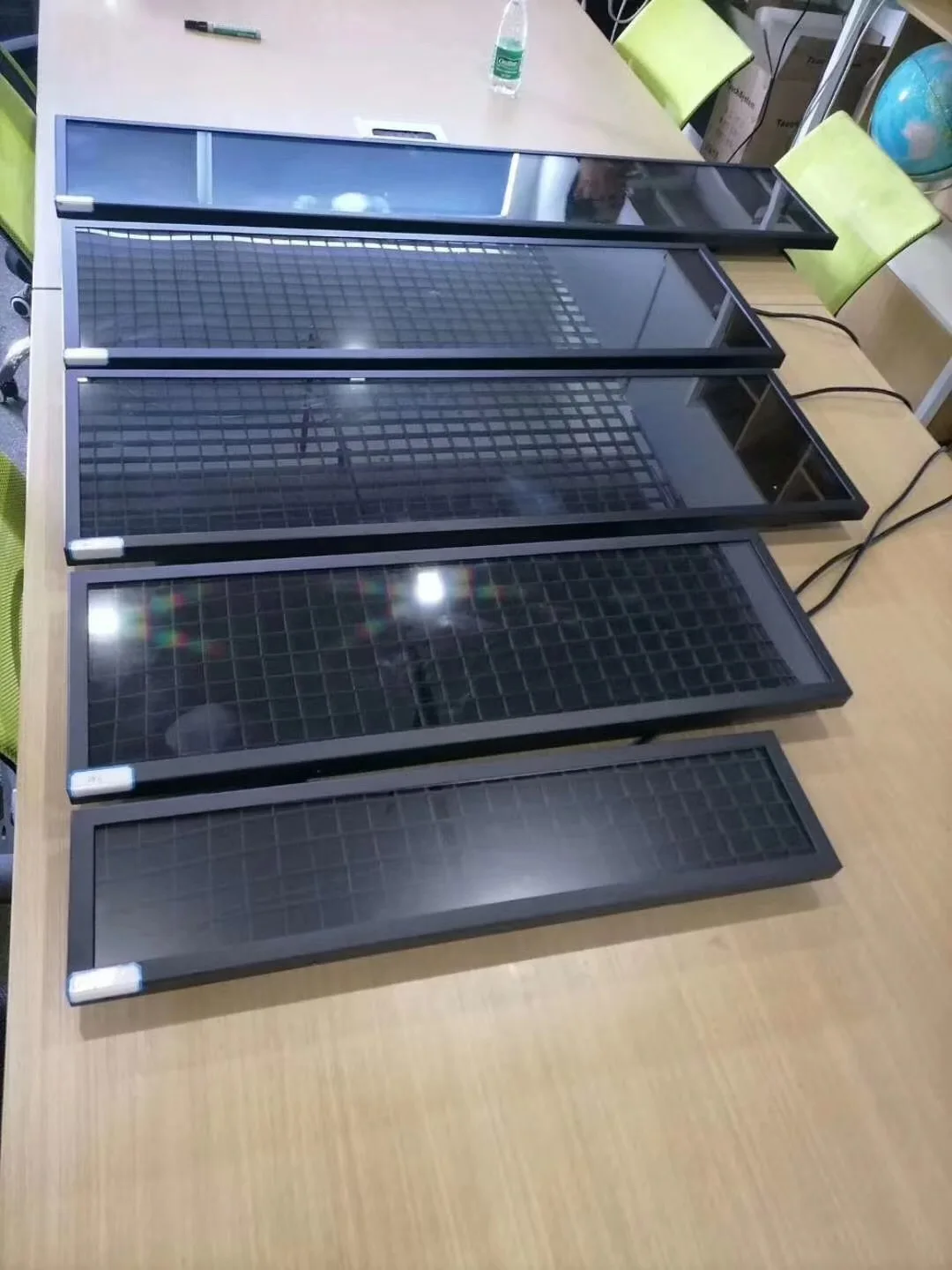

Product Pictures

Product features

1. Humanization sleek & smart design

  1. Metal wiredrawing craft on the frame
  • Automobile metal black or silver painting
  • 4.Multi touch operation

    5.Worldwide certificate approval, such as RoHS, CE, and FCC

    Application:

    The application of bar-type LCD display is very wide.

    Applicable areas: public transportation, subway, airport, shopping mall, security monitoring, command and dispatch center, exhibition center display system, multimedia teaching, government unit, school studio, video conference system, multi-function display Hall, entertainment, restaurants, publicity display, brand store image display, television, business exhibition hall.

    Additional information

    Weight23.000 g
    Dimensions100 × 22 × 57 cm
    Brand Name

    NoEnName_Null

    Origin

    CN(Origin)

    Reviews

    There are no reviews yet.

    Only logged in customers who have purchased this product may leave a review.
